WRT Serial
A Serial Interface for Linksys WRT54GL
These are the schematic and the pcb-layout of the wrt-serial (click on the image to enlarge).

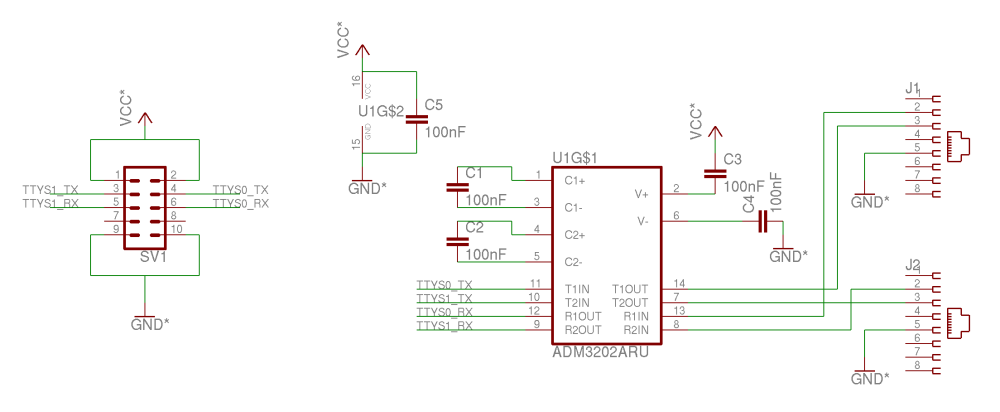

schematic

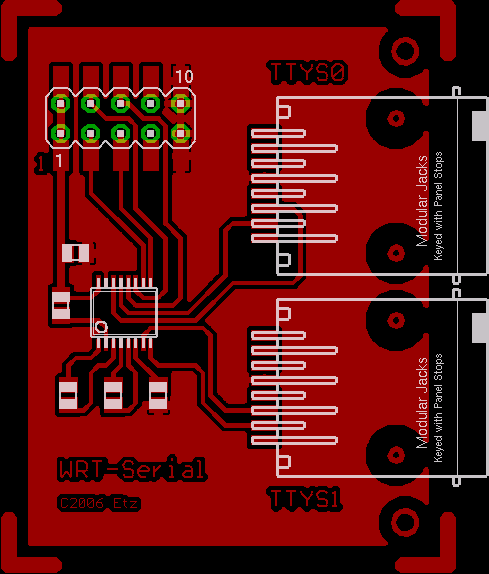

PCB
Here are some pictures of my modified WRT54GL
WRT-Serial PCB

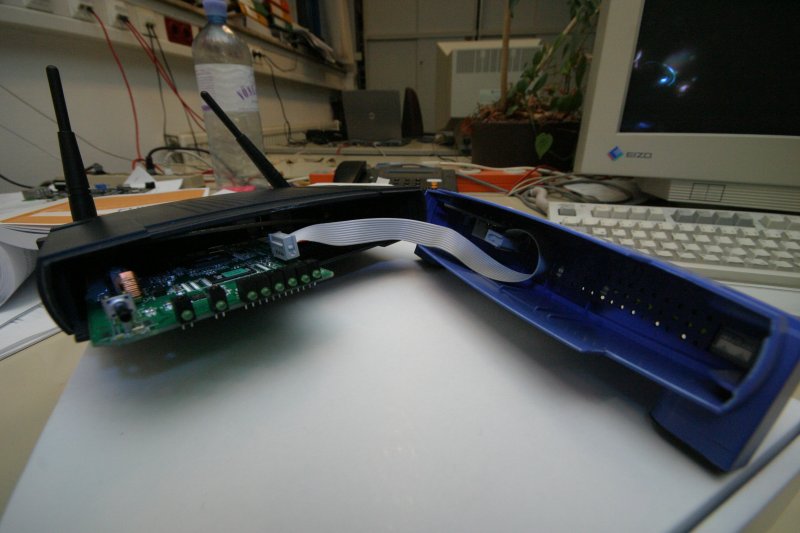

inside WRT54GL

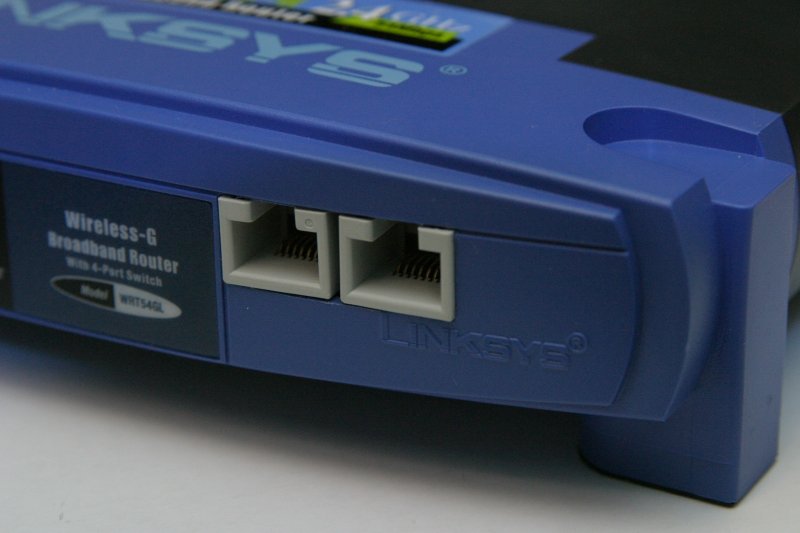

front-view

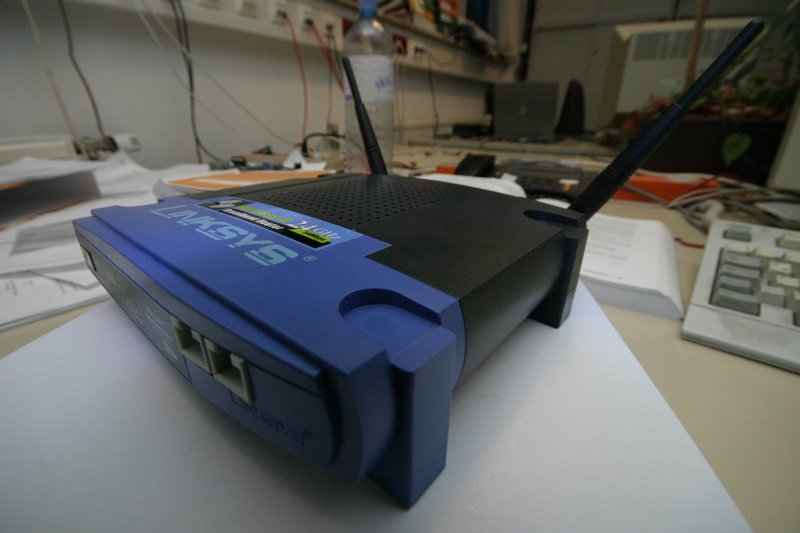

side-view

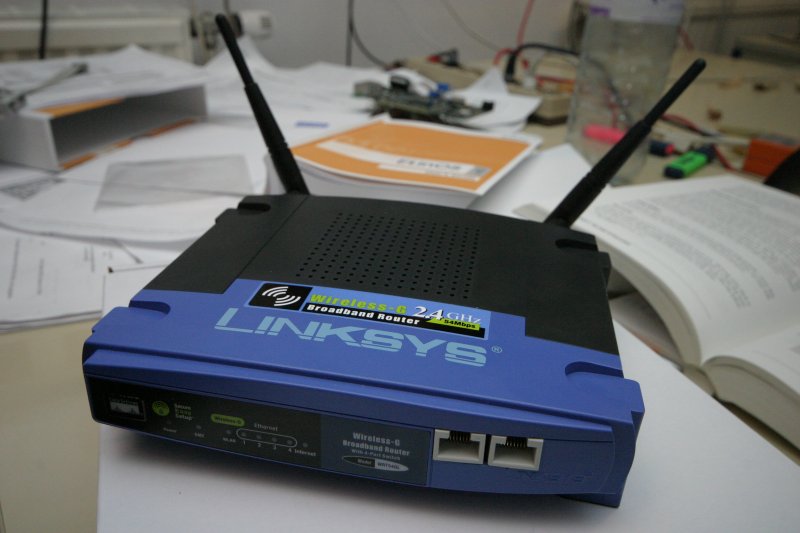

top-view
